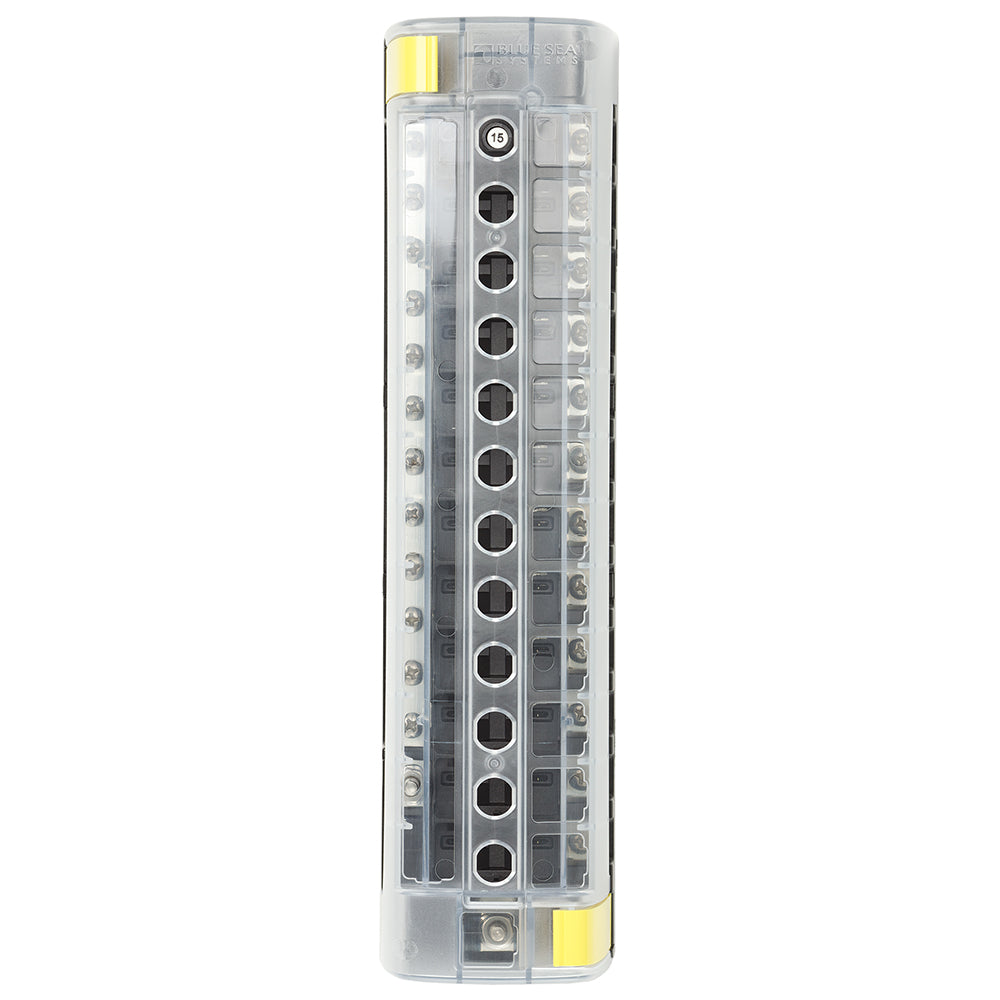

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus [5054]

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus [5054]

Regular price $73.95 USD
Regular price $133.42 USD Sale price $73.95 USD
Sale Sold out
Taxes included.

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals

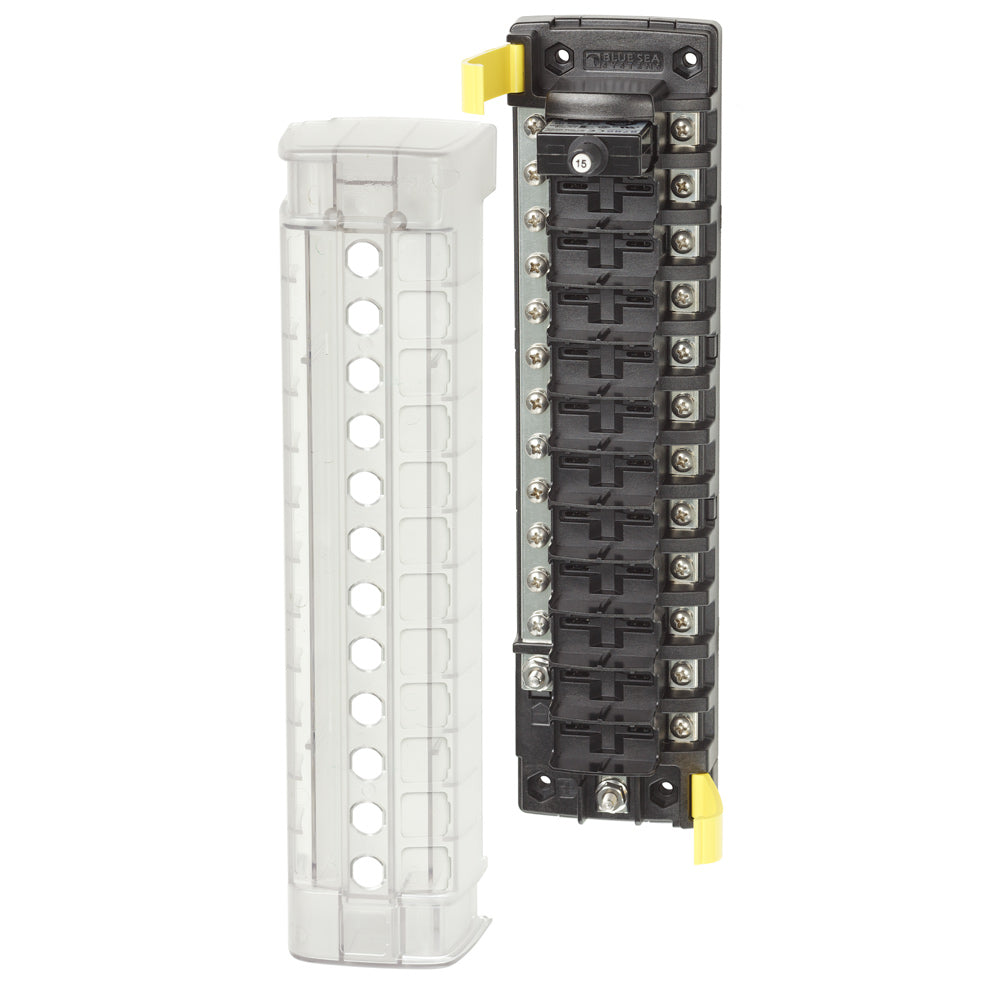

  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals

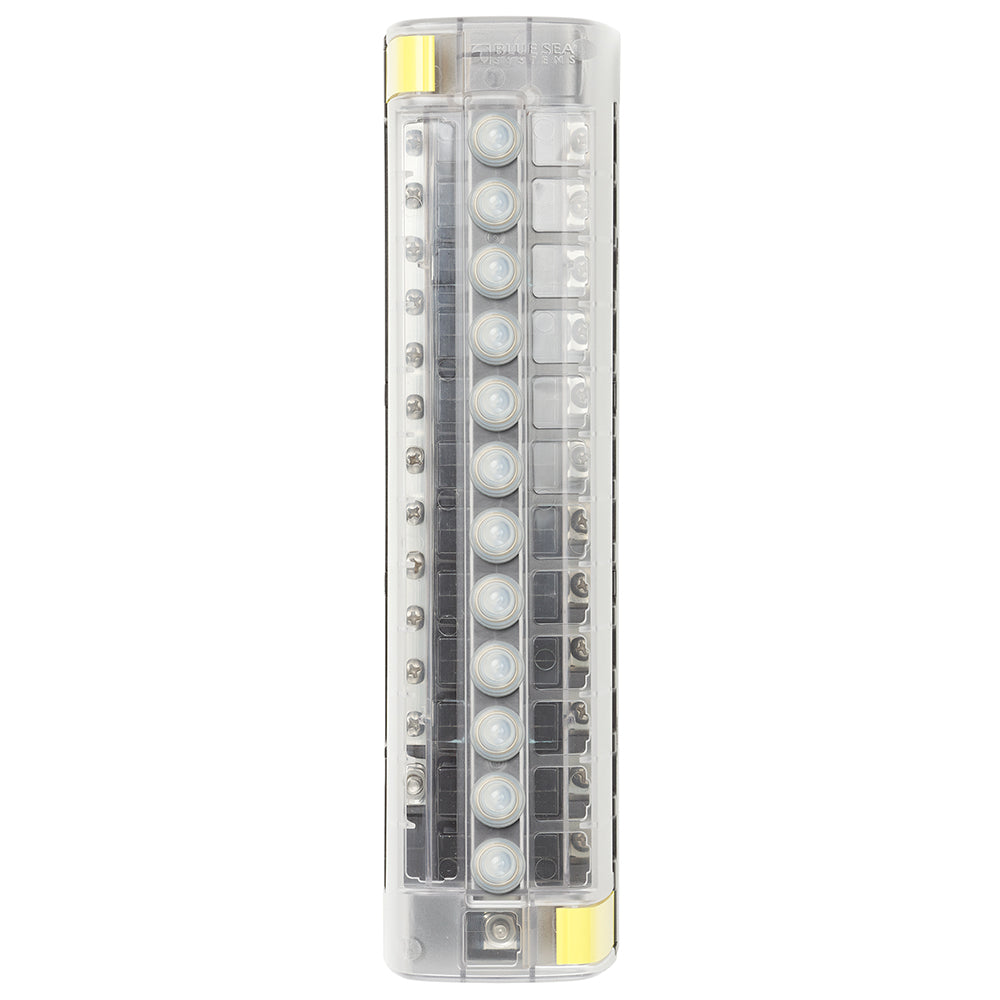

  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 100/32a
  • Box Dimensions: 3"H x 5"W x 15"L WT: 1.5 lbs
  • UPC: 632085050542
