Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]
Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]
Regular price
$43.95 USD
Regular price
$77.78 USD
Sale price
$43.95 USD
Unit price
/
per
Taxes included.
ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
Features

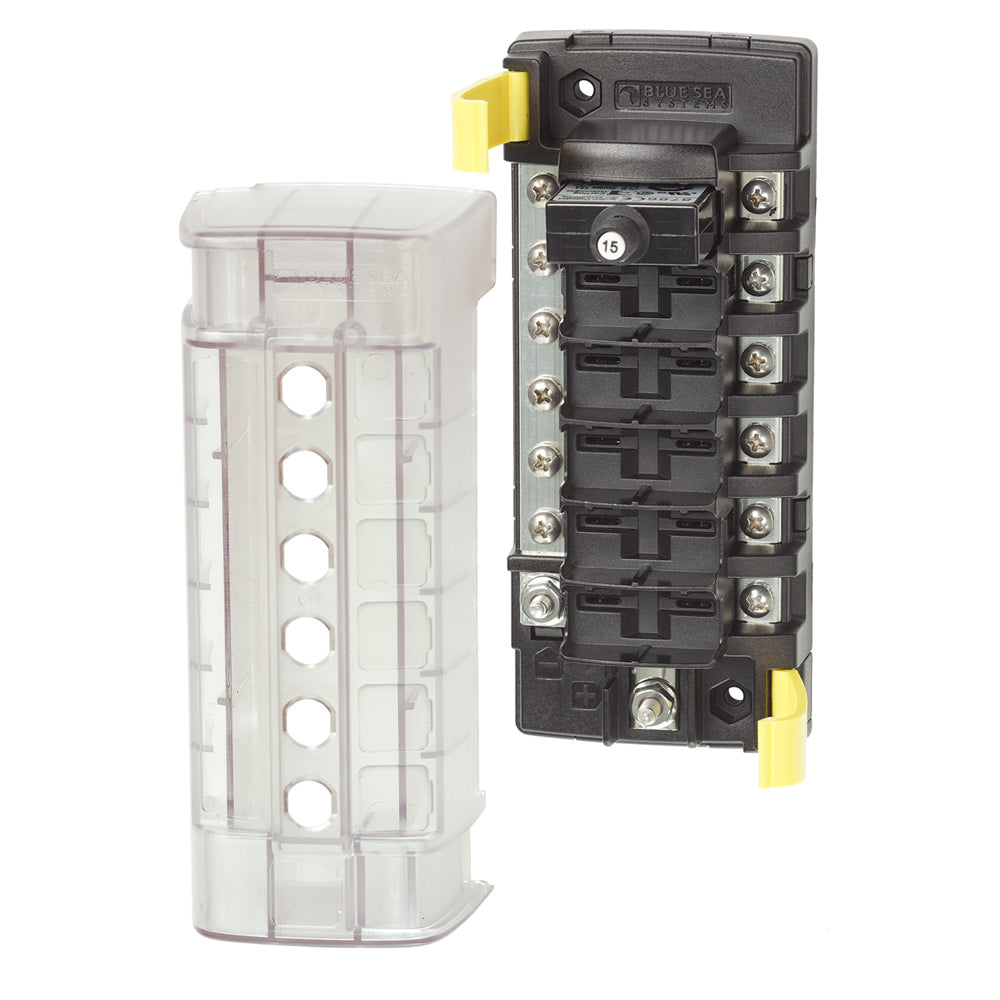

- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals

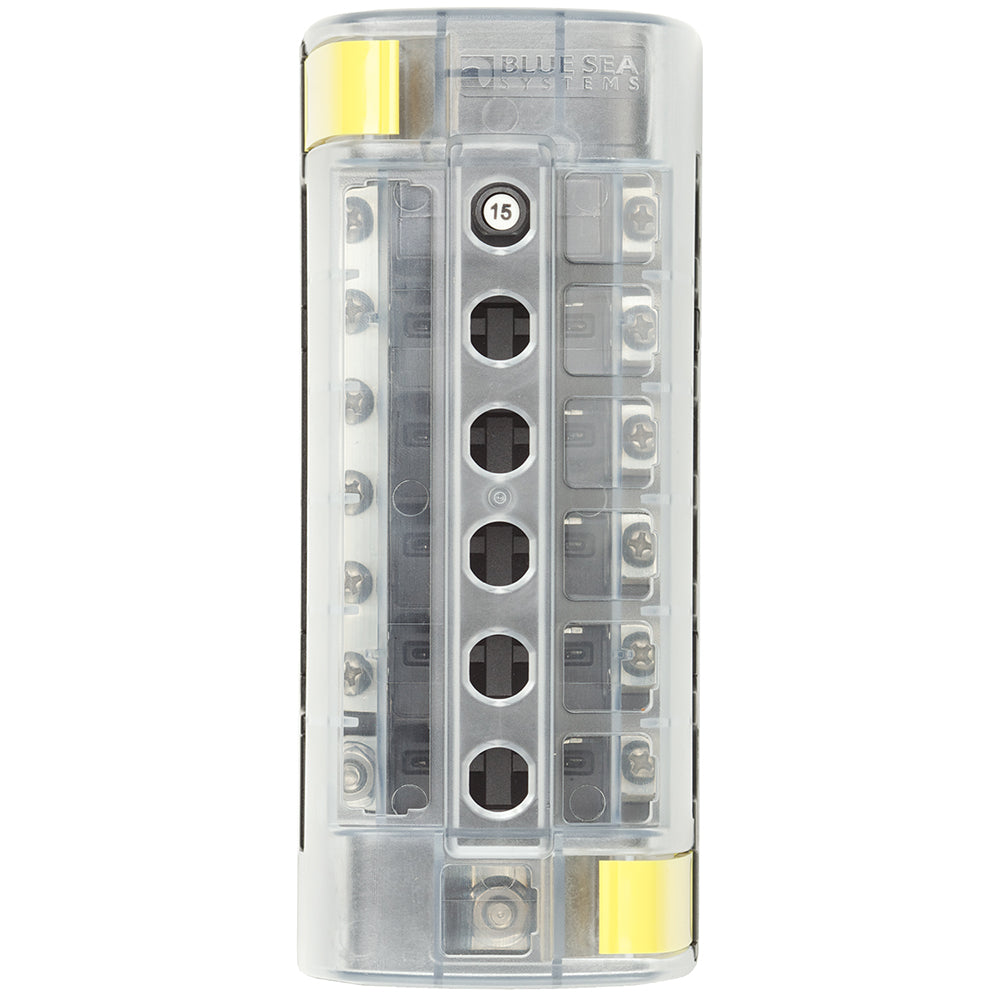

- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals

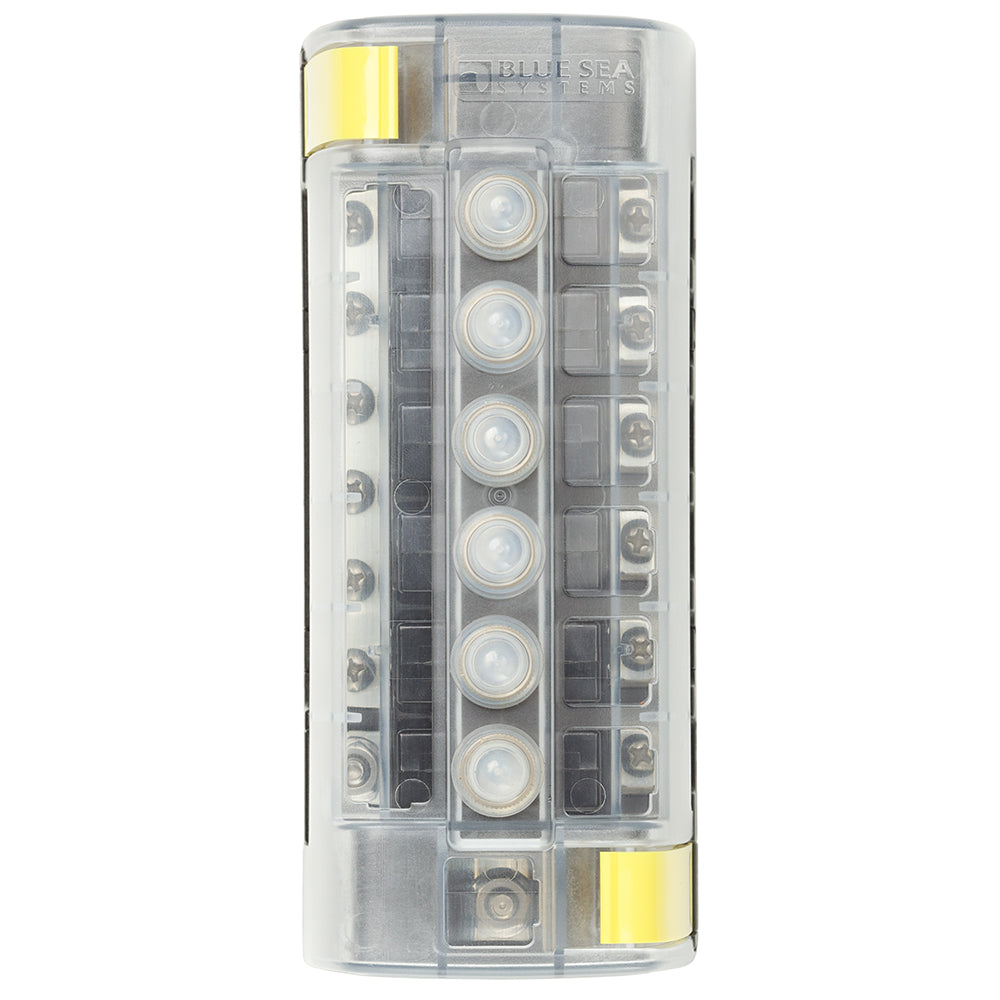

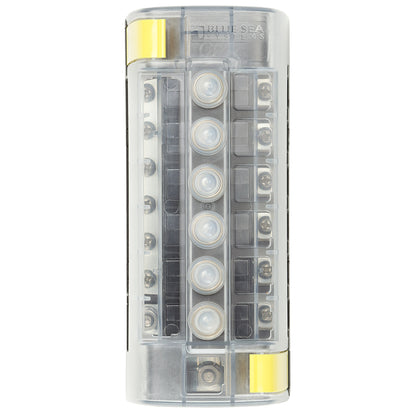

- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 100/32a
- Box Dimensions: 3"H x 5"W x 11"L WT: 0.9 lbs
- UPC: 632085050528
